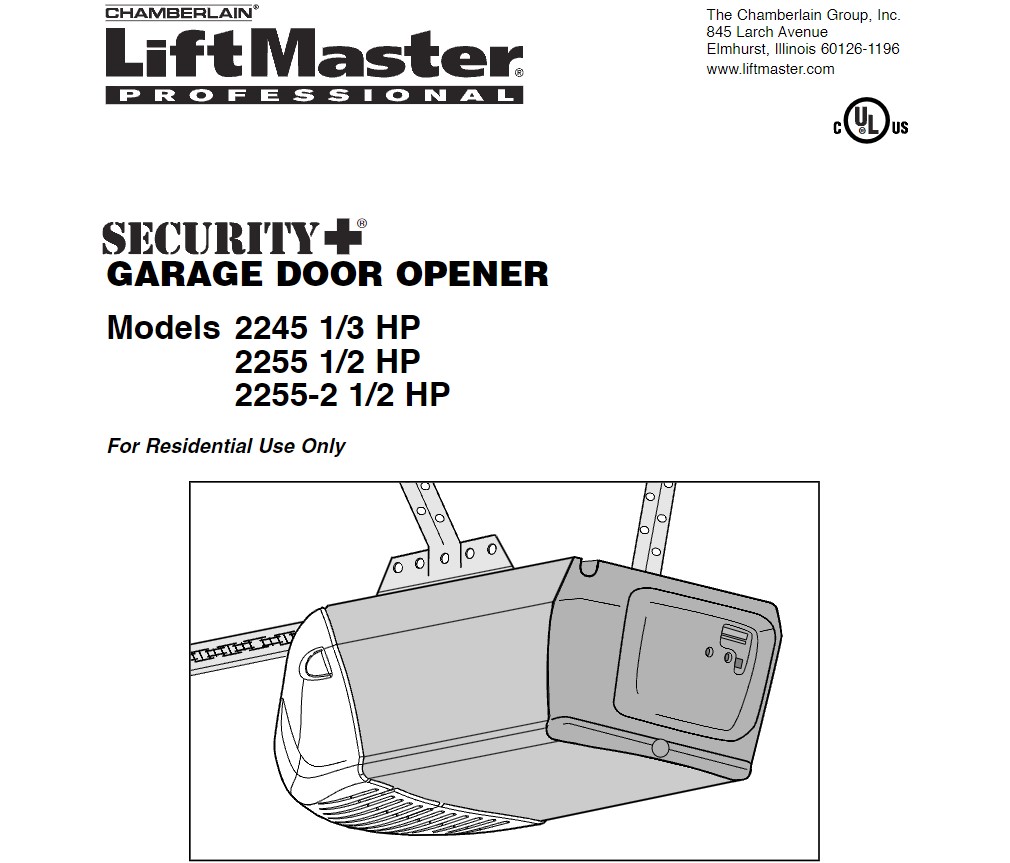

Liftmaster 2245 2255 manual cover
| |

Liftmaster 2255 and 2245 Manual, Remotes and Parts

Overview

The Liftmaster 2245 and 2255 Security + garage door openers were popular models around 2004. The 2245 model has a 1/3 hp motor while the 2255 model has a 1/2 hp motor. Both are chain drive units and work on the Security + 390MHz radio frequency. Other than the horsepower of the motors the parts for both models are the same including the remotes and keypad. Below you will find the operator manual which can be downloaded. We also briefly cover how to program your remote to the operator, a few common issues and solutions, and the most common replacement remotes & parts.

Liftmaster 2255 Manual and Liftmaster 2245 Manual

The Liftmaster 2255 manual and the Liftmaster 2245 manual are your go-to resources for any information you need about your garage door opener. The manual has installation instructions, instructions on adjusting the operator, troubleshooting issues, and replacement parts diagrams.


Programming Liftmaster 2255 or 2245 Opener Remote

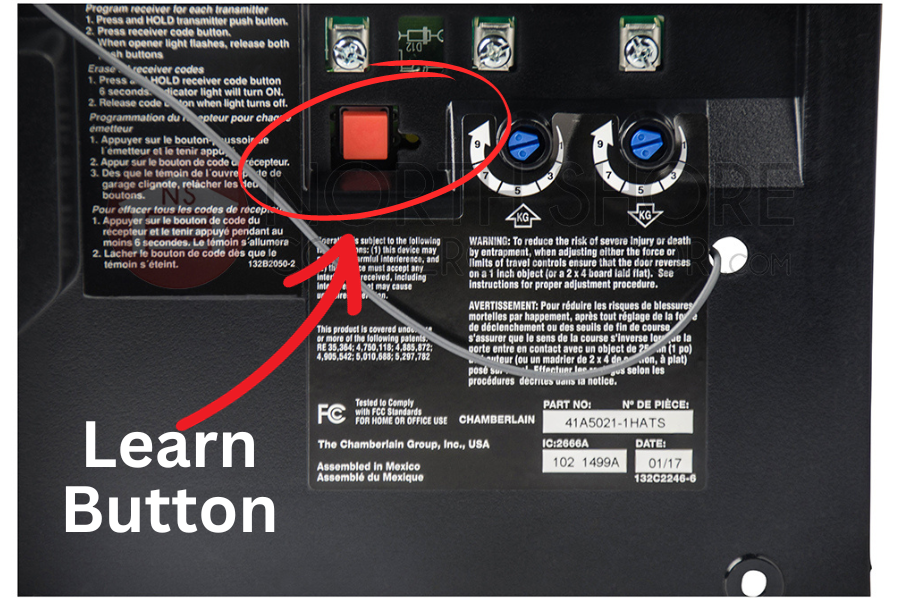

Liftmaster orange Learn Button
  1. Find the ‘Learn’ button on your opener.
  2. Press and release this button.
  3. Press the button on your remote that you wish to program to the operator.
  4. Wait for the opener lights to blink or a click sound.

Commonly Asked Questions and Solutions

Q: What if my remote won’t program?

A: Ensure your opener is plugged in and the electrical circuit is live. Check for any interference from nearby LED lights, which can sometimes affect the signal. Reset the opener and try programming again. If the light bulb is causing interference then you may want to consider using an LED or rough service bulb that is made for garage door openers. Read more about them here.

Q: The ‘Learn’ button doesn’t seem to work. What should I do?

A: Unplug the opener for a few minutes, then plug it back in. If the ‘Learn’ button still isn’t working, it may be a circuit board issue. Refer to your manual for warranty information or contact a professional.

Q: My remote has a very short range. How can I fix this?

A: First, replace the battery in the remote. If the range doesn’t improve, remove any potential signal obstructions or interference sources. If the issue persists, the remote may need to be replaced. The bulb in your operator may be causing interference. Read more about the bulbs that we recommend here.

Q: How do I erase all remote controls from my opener?

A: Press and hold the ‘Learn’ button until the LED goes out (about 6 seconds). This will clear all programmed remotes. You will need to reprogram the remotes and keypad (if you have one) that you wish to use.

Q: My door won’t close and the lights are flashing. What’s wrong?

A: This usually indicates an issue with the safety sensors. Ensure they are aligned correctly, the lenses are clean, and there are no obstructions. There also could be other issues causing the problem. Refer to the troubleshooting guide in the back of the opener manual.

Replacement Parts and Remotes

When you need Liftmaster 2255 parts or a remote for your Liftmaster model 2245 garage door opener then it’s important to find compatible items. Some of the more common remotes include the 971LM Remote, 973LM Remote, and 878MAX Wireless Keyless Entry. The 41C4220A Gear Assembly and 041-0136 Safety Sensors are two of the most common replacement parts.

PREVIEW

PRODUCT

DESCRIPTION

VIEW

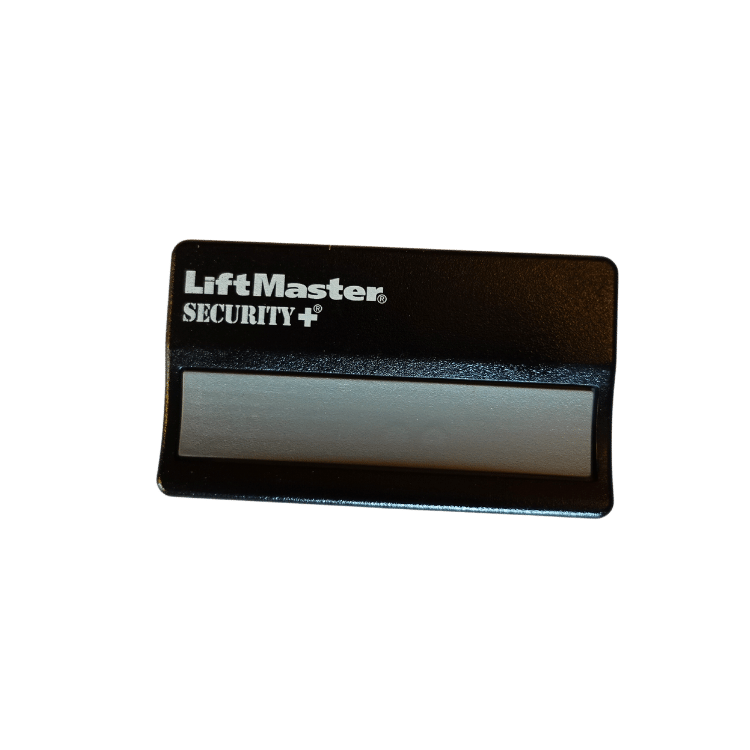

971LM Liftmaster Remote

  • 1-Button Remote

893MAX Liftmaster Remote

  • 3-Button Remote

890MAX Liftmaster Remote

  • 3-Button Keychain Remote

878MAX Liftmaster Keyless Entry

  • Wireless Keyless Entry

PREVIEW

PRODUCT

Description

VIEW

41C4220A Gear Assembly

  • Replacement Gear Assembly

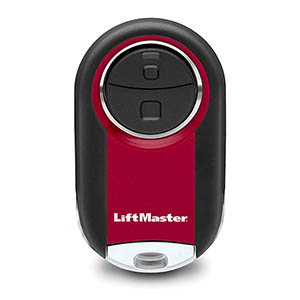

374UT Liftmaster Universal Remote

  • Universal 2-Button Remote

041-0136 Liftmaster Safety Sensors

  • Replacement Safety Sensors

Conclusion

The Liftmaster 2245 and 2255 garage door openers are designed for performance and safety. With the help of the detailed manual, programming your remote and replacing parts can be done with ease. Keep this guide handy for a quick reference to ensure your garage door opener continues to function efficiently.
