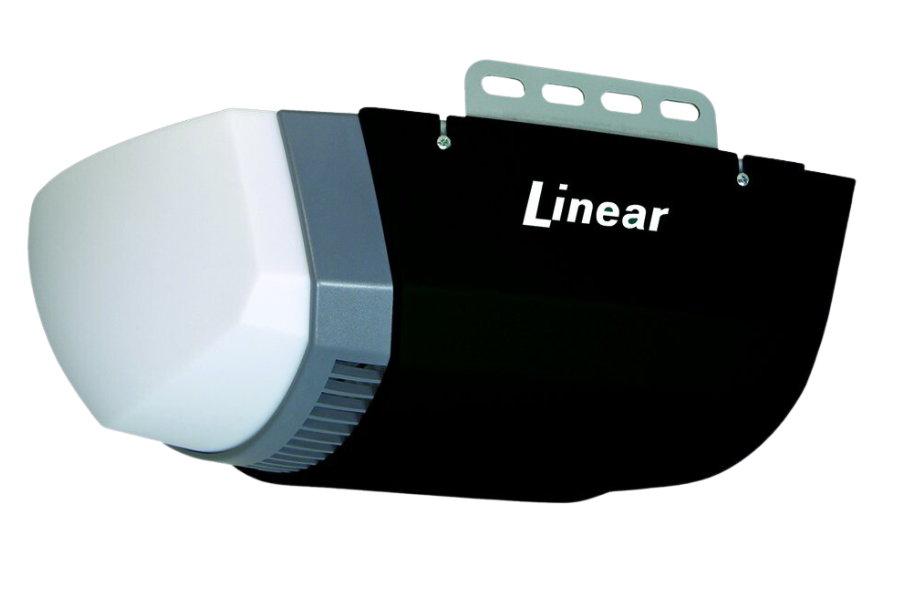

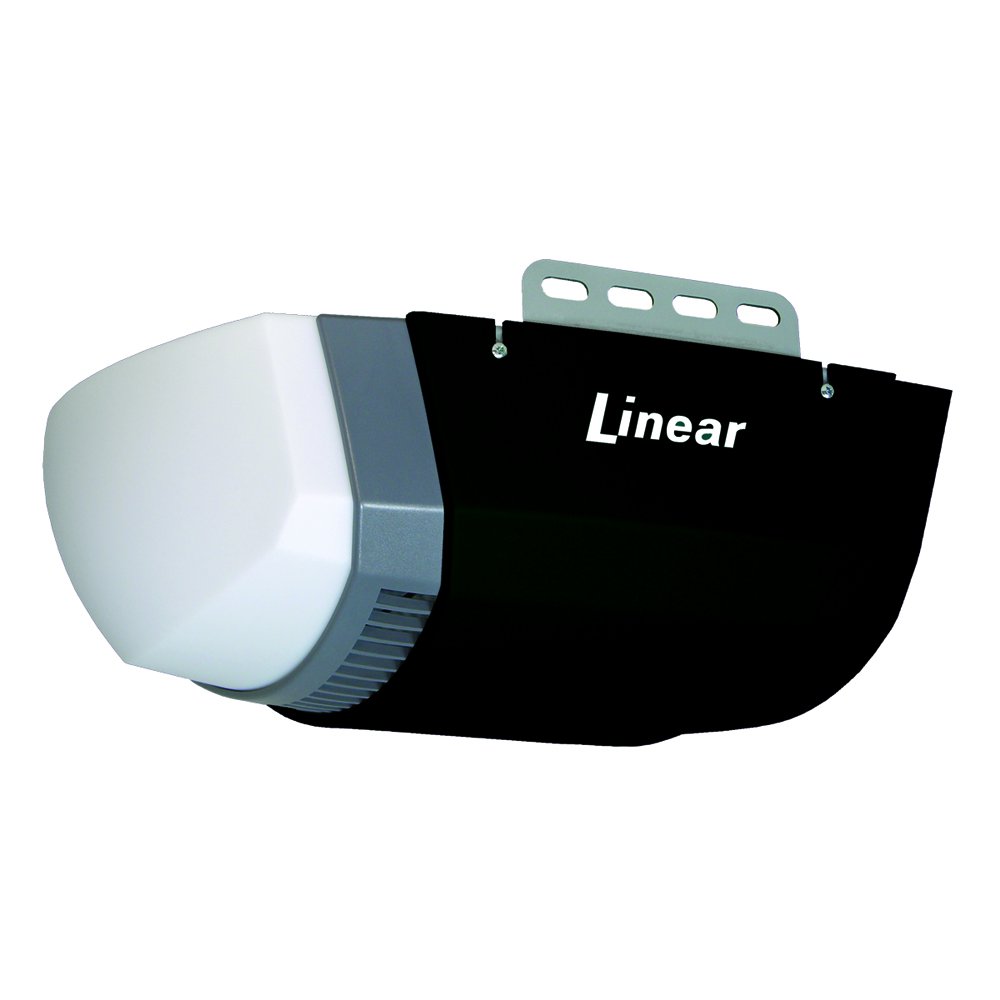

Linear LDCO800 Garage Door Opener Manual and Guide
If you are on the hunt for a reliable, efficient, and quiet garage door opener, then the Linear LDCO800 is a good choice. The following information will help guide you on how to make the best use of the Linear LDCO800 manual to ensure the seamless operation of this outstanding operator.
Unmatched Efficiency and Quiet Operation
The Linear LDCO800 stands out in the market with its DC-powered motor, ensuring an ultra-smooth and quiet performance. This energy-efficient unit operates at AC-equivalent speeds, providing long-term reliability without the noise. Whether you are coming home late at night or leaving early in the morning, you can trust the LDCO800 to operate silently, ensuring that you won’t disturb your loved ones.
Illuminate Your Space
Equipped with a 100-watt courtesy light, the LDCO800 ensures your garage is well-lit whenever you need it. The single-lamp setup provides ample lighting, enhancing visibility and safety in your garage space. Please note that the bulb is not included, giving you the flexibility to choose the lighting that best suits your needs. Check out Our Top Picks for Garage Door Opener Light Bulbs.
Optional Battery Backup for Peace of Mind

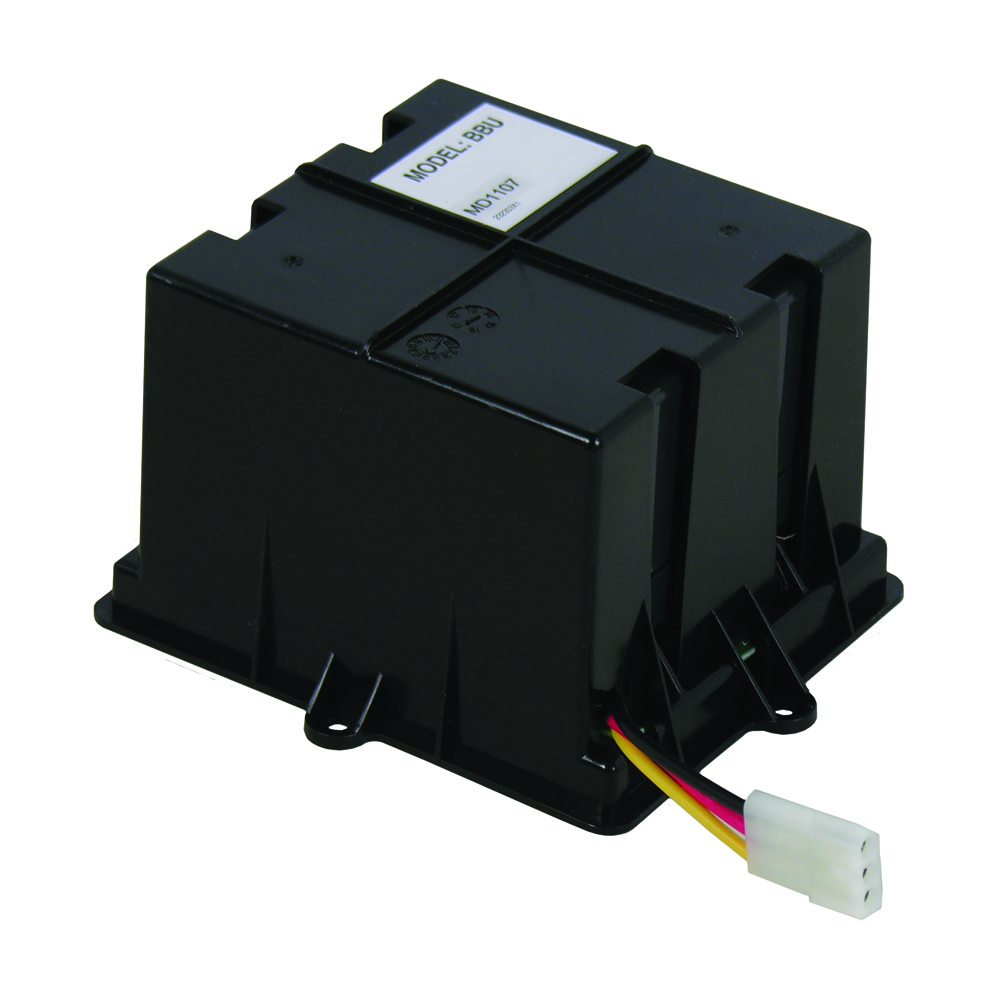

Power outages can happen when you least expect them, but with the LDCO800’s optional battery backup, you are always one step ahead. The BBU Battery Backup Unit is designed to provide power to the operator during a power outage.
The BBU Battery Backup contains two rechargeable batteries that are charged and maintained by the LDCO800 operator. The battery will provide power to the operator during a power outage for up to 24 hours but the duration of the battery backup will depend on how often the operator is used in battery backup mode.
The battery will make 3 beeps every minute to indicate when the battery is low or dead.
For retrofit installations, you’ll need to replace the LDCO800 control board with a newer model HAE00061 control board that has a BBU connector.
Check prices on Amazon for replacement BBU Linear Battery Backup Unit
Enhanced Security with MegaCode® Radio System
Security is a top priority with the Linear LDCO800. The MegaCode® radio system offers over a million unique codes and configurable access levels for up to 10 users, ensuring that your garage is secure and accessible only to authorized individuals. See the Compatible Remotes and Parts below for more information.
Eco-Friendly and Powerful
The LDCO800 is not only efficient but also eco-friendly. The low-power standby mode significantly reduces energy consumption, making this unit an excellent choice for environmentally conscious homeowners. Despite its eco-friendly design, the LDCO800 does not compromise on power, supplying 800 Newtons of lifting force, capable of easily handling heavy garage doors.
Flexibility and Ease of Use

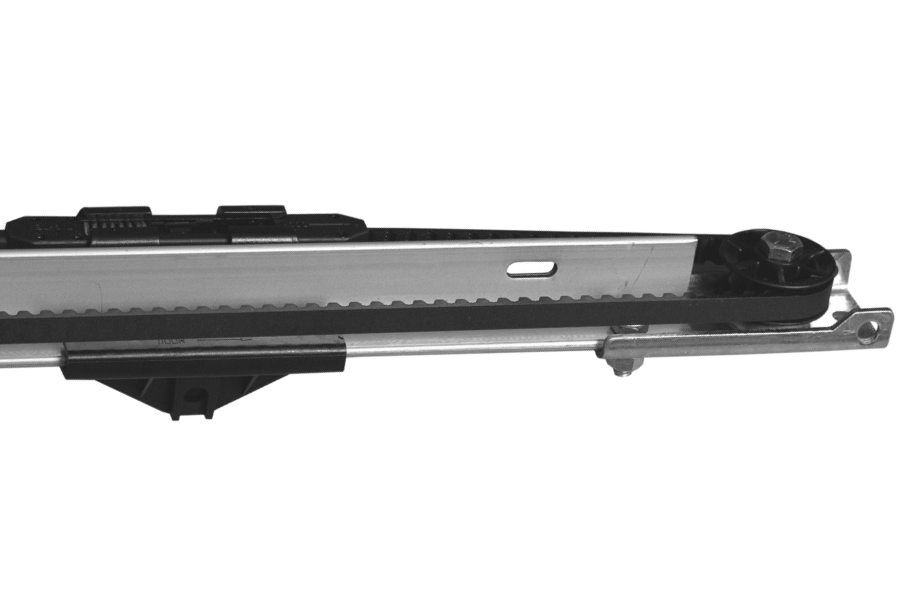

This garage door operator is compatible with belt-drive or chain-drive 7’, 8’, or 10’ Rails, providing flexibility in installation. Purchased new, the operator package includes all necessary accessories, including a deluxe illuminated wall station, a three-button visor remote control, safety sensor beams, and mounting hardware.
Making the Most of Your Linear LDCO800 Manual
To ensure you are making the most out of your Linear LDCO800, it is crucial to familiarize yourself with the Linear LDCO800 manual. This comprehensive guide provides detailed instructions on installation, operation, and troubleshooting, ensuring you can fully utilize all the features and benefits of your garage door opener. Whether you are a DIY enthusiast or prefer professional installation, the Linear LDCO800 manual is an invaluable resource to ensure your garage door opener is set up and functioning correctly.
LDCO800 Garage Door Opener Installation Manual

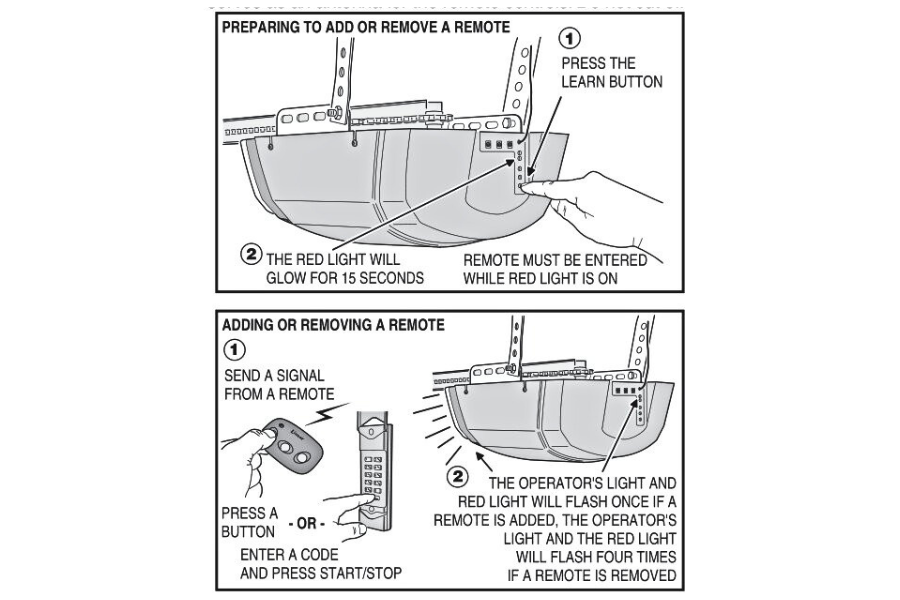

How to Program Linear Opener Remotes
Below you’ll find the simple instructions for programming a replacement remote to the LDCO800 garage door opener. These instructions can also be found in the operator manual.
- On the back of the operator press the Learn button once. The red LED light will come on indicating that the operator is ready to learn the code from a remote.
- Press and hold the button on the remote that you wish to program. The red LED light near the Learn button will flash once (and the operator light bulb will flash once) indicating that the remote was programmed to the operator.
- The remote is now programmed and can be tested by pressing the remote button. Repeat steps one and two for any additional remotes that you wish to program.

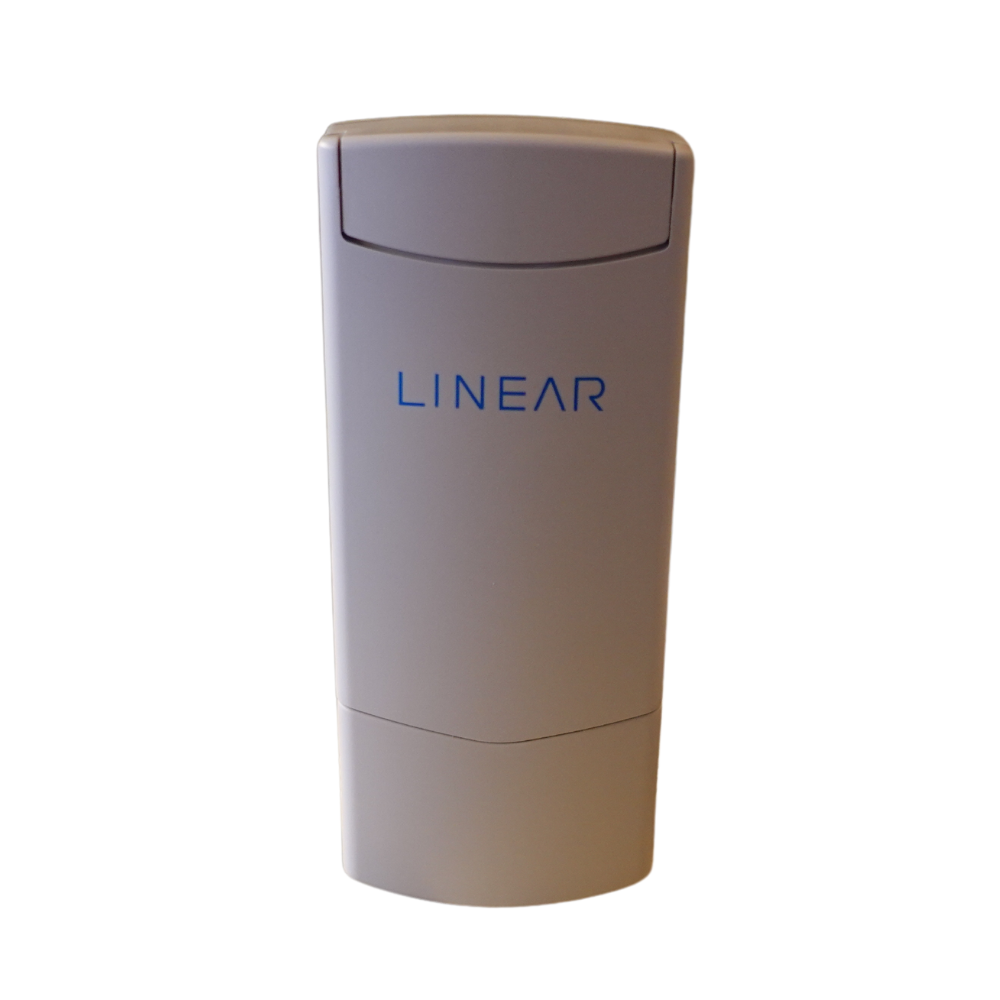

How to Program Linear Keyless Entry
Below are the instructions to program the models MDTK, LPWKP, and NMTK wireless keypads to the Linear LDCO800 garage door opener. These instructions can also be found in the operator manual.
- On the back of the operator press the Learn button once. The red LED light will come on indicating that the operator is ready to learn the code from a remote.
- Enter a 4-digit PIN code (any number that you choose) into the keypad. Then press and hold the Start/Stop button on the keypad. The red LED light near the Learn button will flash once (and the operator light bulb will flash once) indicating that the keypad was programmed to the operator.
- The keypad is now programmed and can be tested by entering your 4-digit PIN number and pressing the Start/Stop button on the keypad.
Compatible Linear Remotes, Keypads and Parts
PREVIEW | PRODUCT | DESCRIPTION | VIEW |
 | MTR-1 Linear Remote |
| |
 | MTS3 Linear Remote |
| |
 | NMTK Linear Keyless Entry |
| |
PREVIEW | PRODUCT | RATING | VIEW |

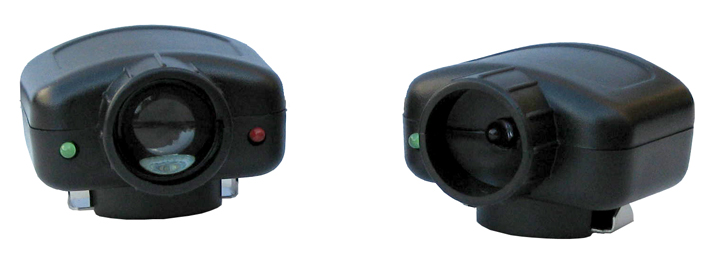

 | HAE00002 Linear Safety Sensors |
| |
 | HAE00001 Linear Wall Control Station |
| |

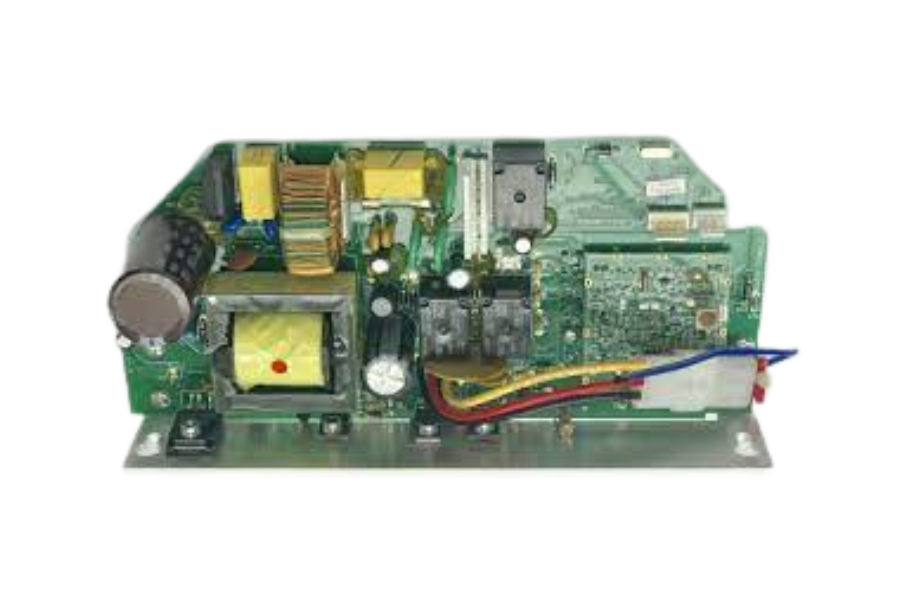

 | HAE00061 Linear LDCO800 Logic Board |
|
Conclusion
Elevate your garage experience with the Linear LDCO800 Garage Door Opener. Experience unmatched efficiency, quiet operation, and enhanced security, all backed by a comprehensive warranty and the invaluable support of the Linear LDCO800 manual. Make the smart choice for your home and choose the Linear LDCO800 today.
